Underneath a car from Japan: what you can see from the ground, and what you can't

Sources checked 11 October 2026

A dealer's listing photos almost never show the underside of a car. These are photos of the underside of my own car, taken with the car on the ground, the way we'd photograph yours: we don't lift cars.

The underside of my car

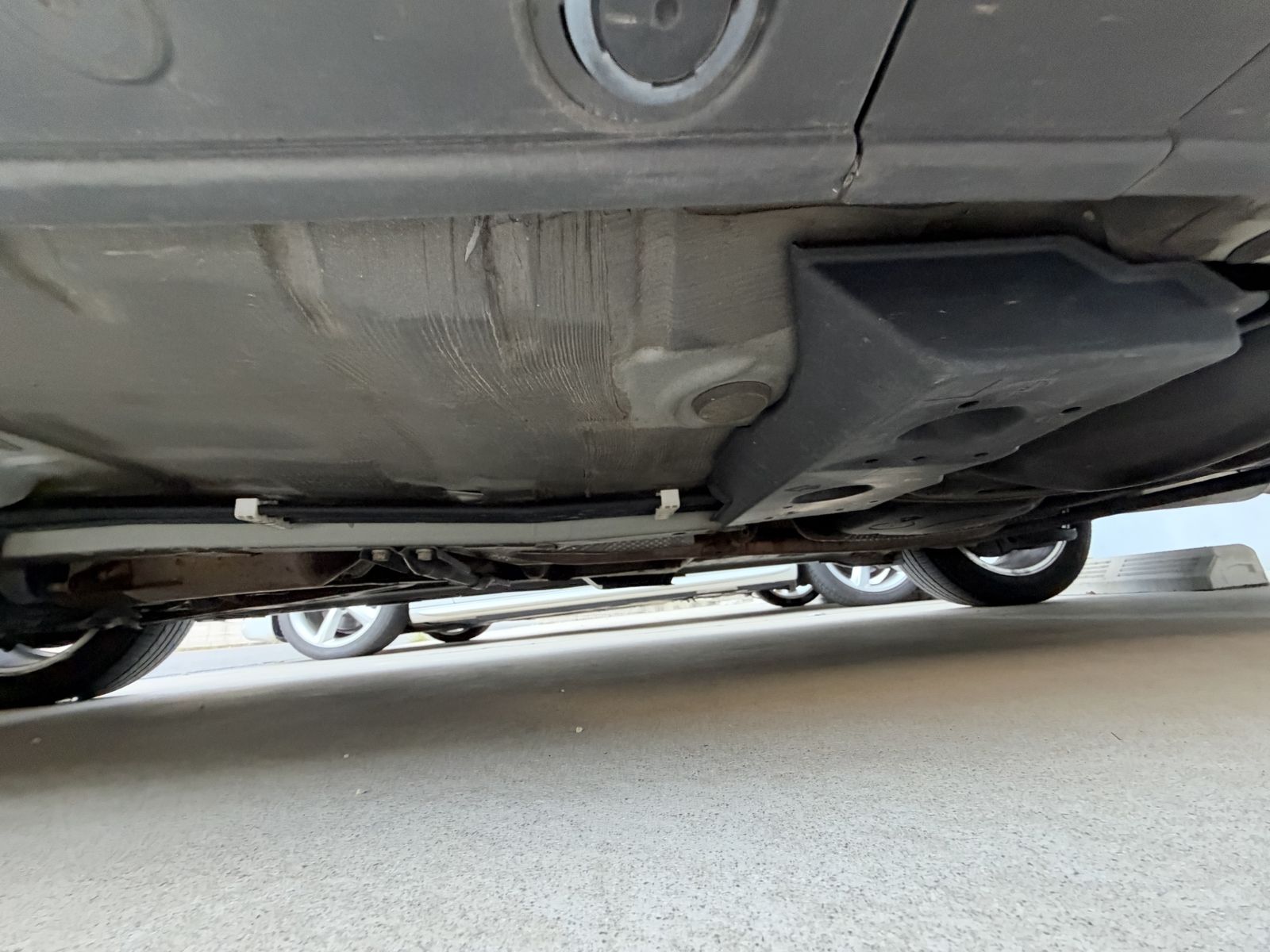

The underside of a grey car photographed from ground level, looking along the side of the car
Underneath my car, photographed from the ground. This is the kind of view you get without lifting the car.

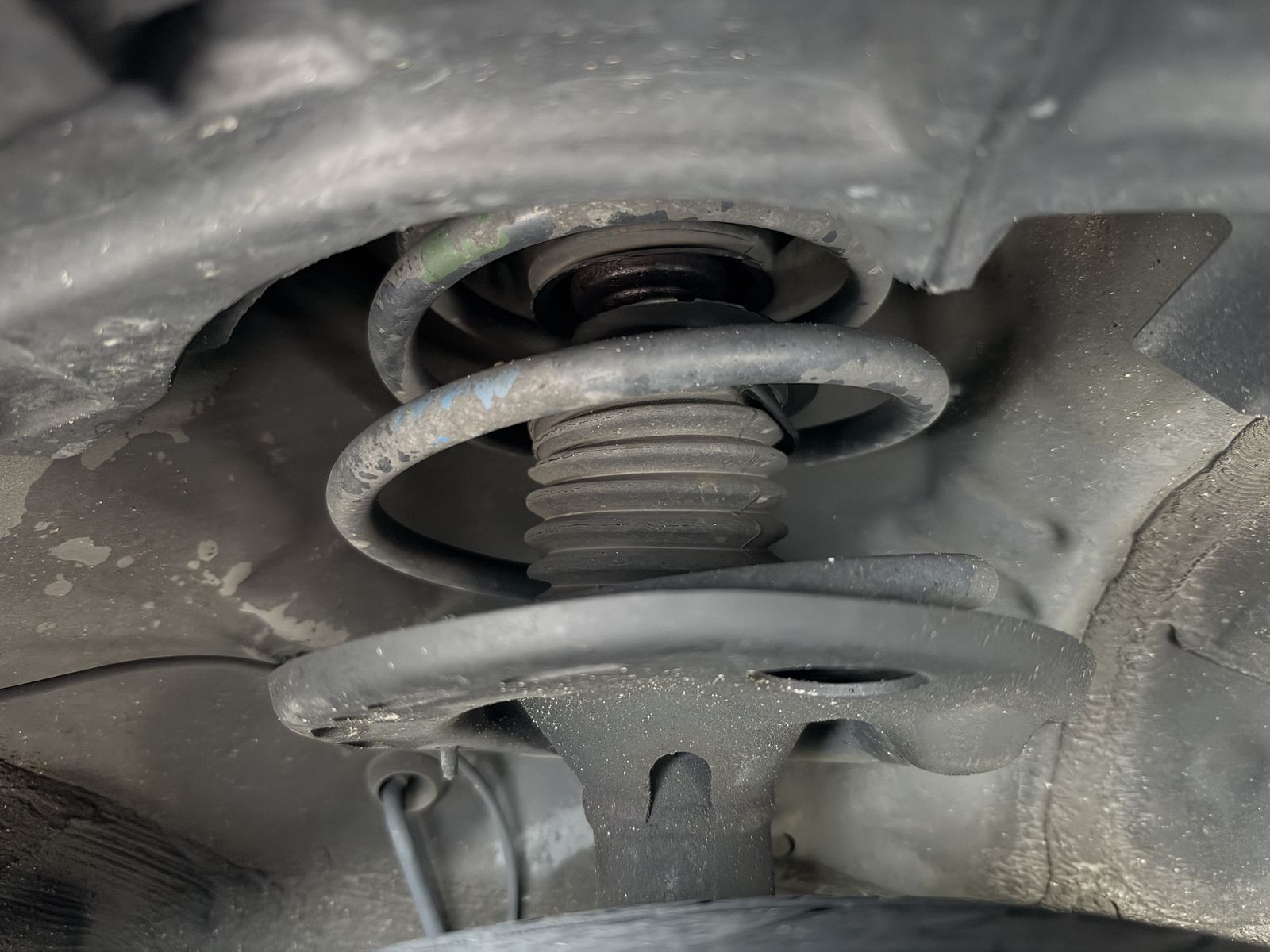

A front suspension strut and coil spring, seen from below inside the wheel arch
The front strut and spring on my car, seen from below.

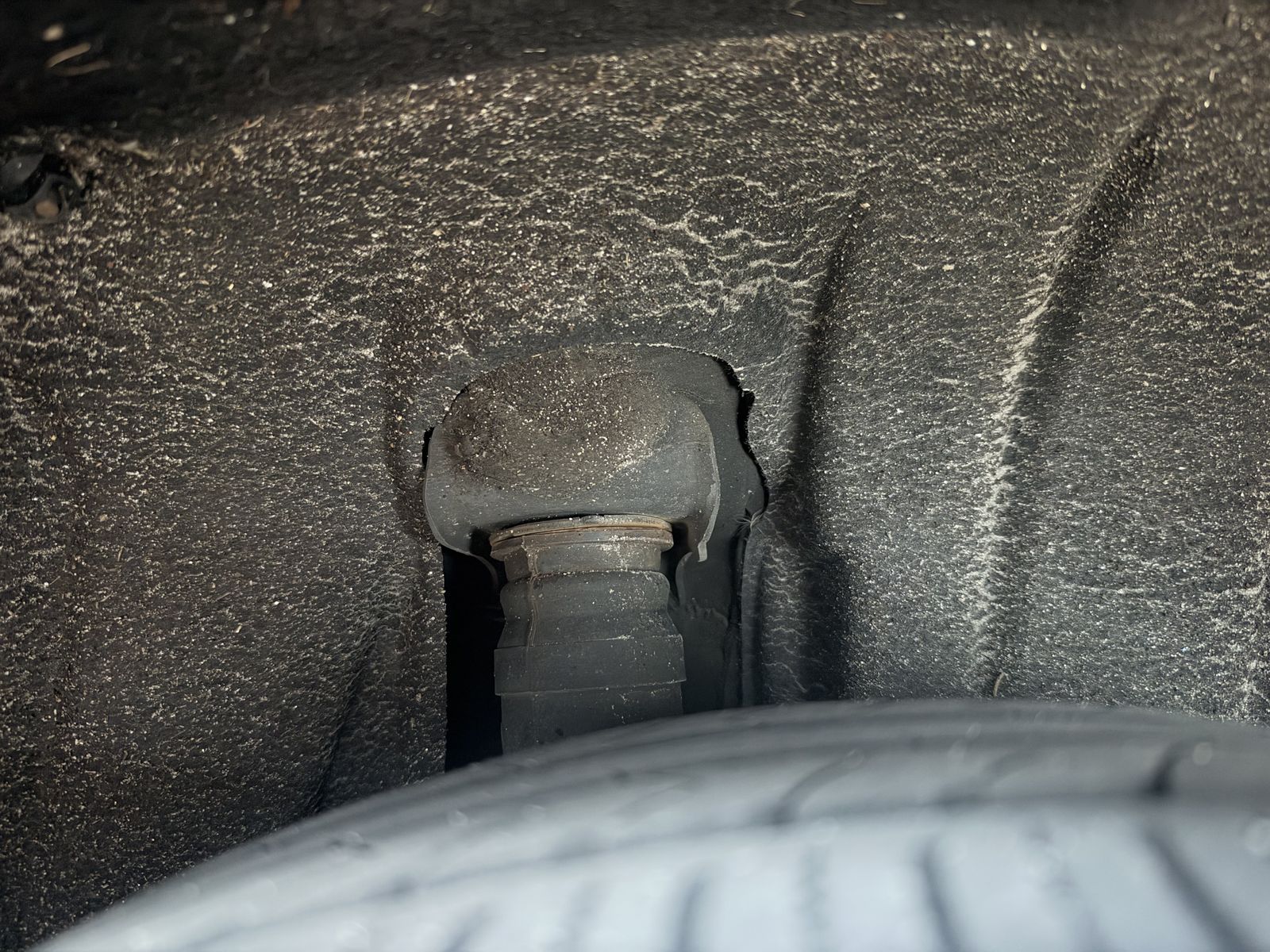

The top of a suspension strut inside a wheel arch, seen from below
The base of a strut on my car, seen from inside the wheel arch. I think this is the rear one on the passenger side.

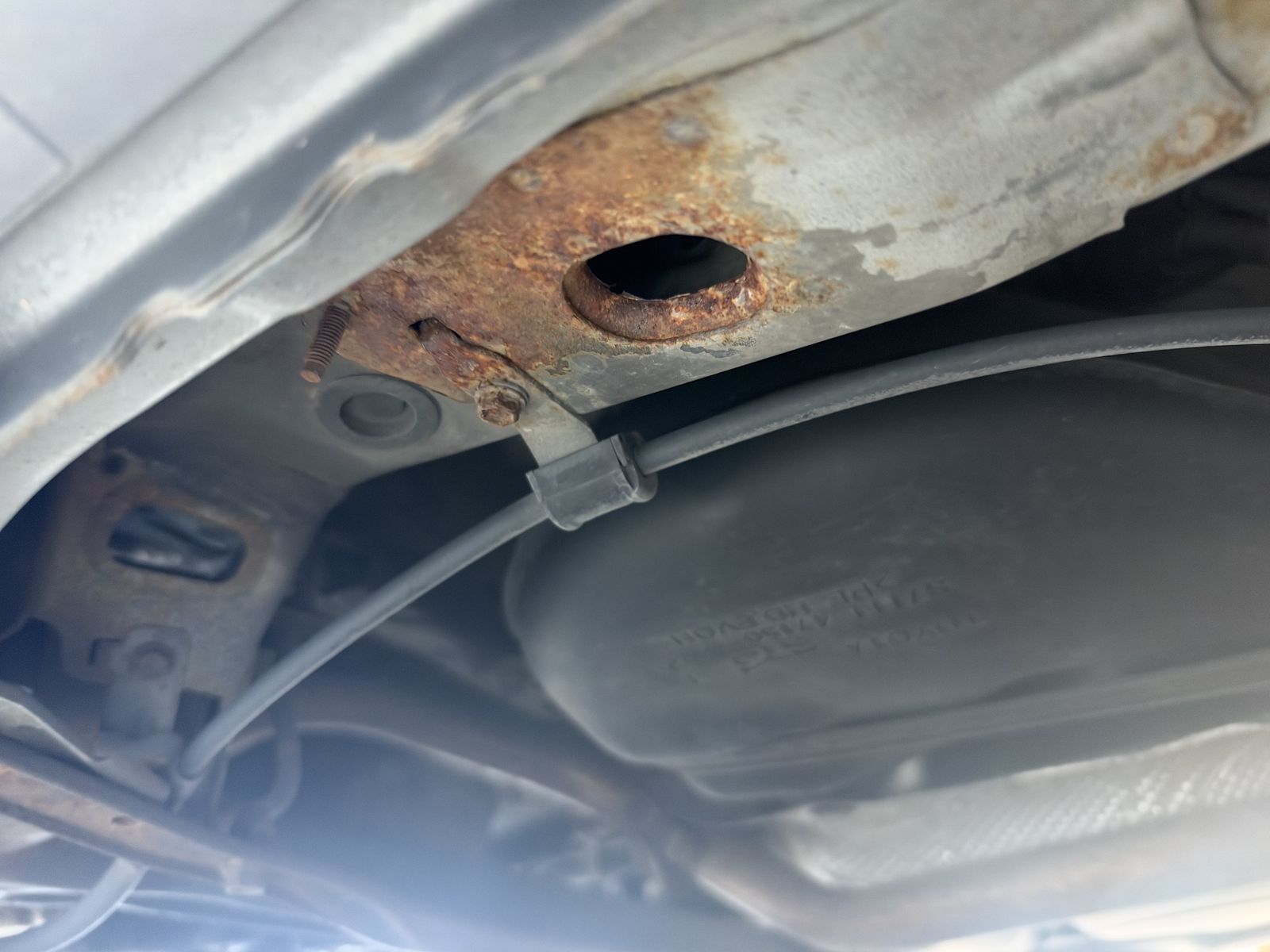

A rusty section of the underside of a car, photographed from below
Rust on a frame-like part of the underside, behind the passenger door, around the back of the jacking point, I think. In my view, it's bad.

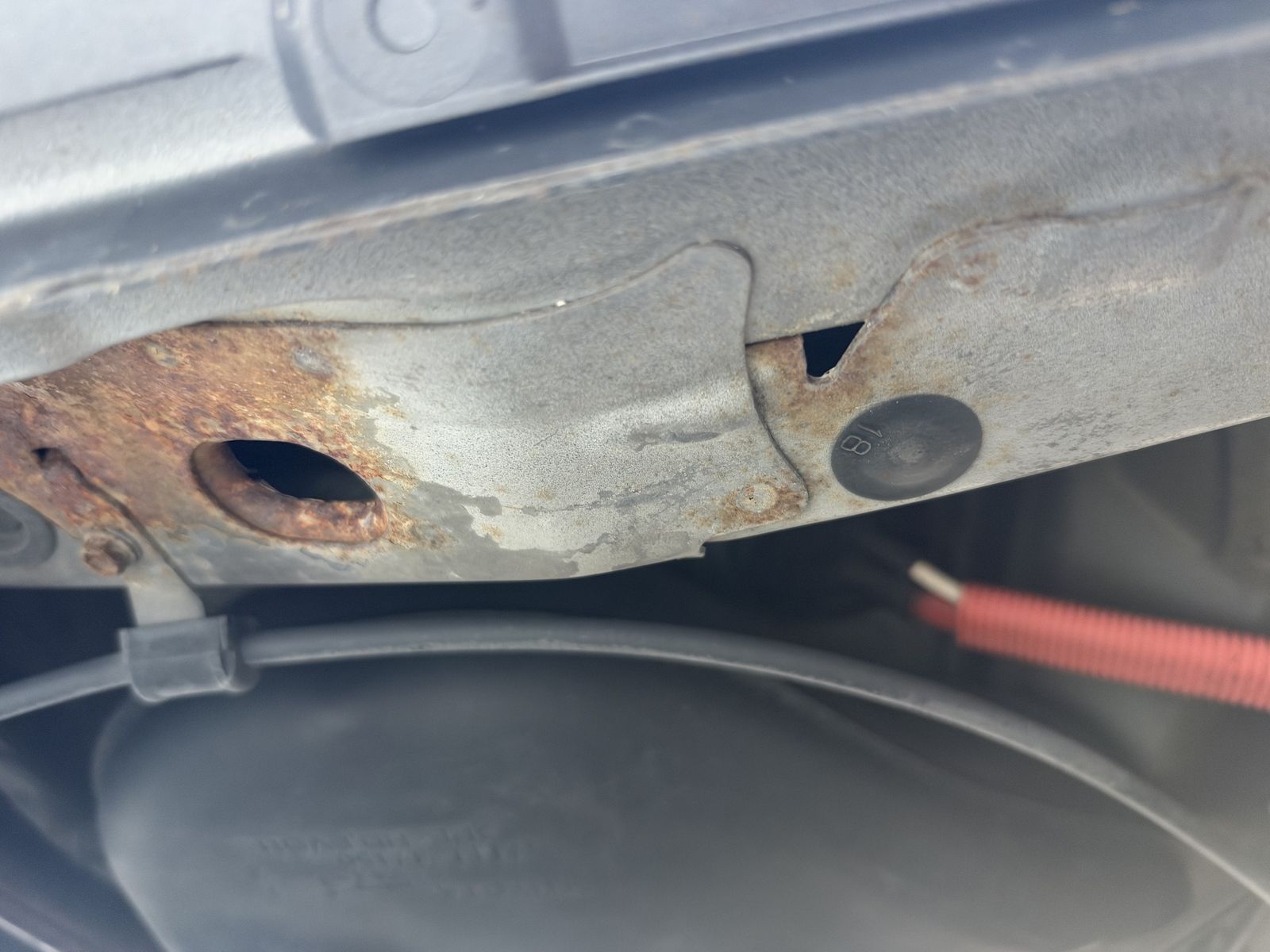

Another rusty section of the underside of the same car
More of the same rust, behind the passenger door. The underside of my car is covered in rust.

Reading the five photos

These are the photos we'd send you from a viewing, so here is what each one can and can't tell you.

  1. The view from the ground (first photo). This is how much of the underside you see without lifting the car: the floor and the sills along one side, as far as a phone held at ground level reaches. Anything behind the parts nearest the camera stays hidden.
  2. The front strut and spring (second photo). From below, you can see the surface of the spring and the strut, and whether rust is on it. The top of the strut tower is under the bonnet (hood), so that has to be photographed from above; see the strut tops on what dealer photos miss.
  3. The base of a strut (third photo). I think this is the rear one on the passenger side. It shows the metal where the strut meets the body, and rust on its surface. It doesn't show whether that metal is still firm.
  4. The rust behind the passenger door (fourth and fifth photos). Rust guides draw a line between light surface rust, which is common on an older car, and rust that flakes, swells along a seam or makes a hole. This is the flaking kind, on a frame-like part, and it's the kind I'd call bad. What a photo can't show is how much metal is left under it.

If you're in the UK, that last point matters for the MOT. The DVSA's inspection manual treats the load-bearing structure where the brakes, steering and suspension are mounted, and the area around it, as "prescribed areas". Corrosion there fails the test if it has made a hole, or if the metal doesn't feel firm when pressed with a finger and thumb. A photo can't tell you how firm the metal is.

I haven't had a rustproofing coat put on my car, so these photos show the rust itself, not a coating. On a coated underside, the rust under the coat can't be seen at all; ask the dealer whether, and when, it was last coated, and see rustproofing a car from Japan.

How these were taken, and what that means

I crouch down to look, and slide my phone in underneath to take the photos. My phone is the only tool I bring: no lift, no inspection mirror, no separate lamp. So what we can show you is what a phone can reach. Some parts can't be reached or seen without lifting the car, and we mark those as Not verified in the report, with the reason.

From photos like these, I can usually get a feel for whether a car has a lot of rust. What I can't tell is whether it has rotted through deep inside a hole. On a car that's been lowered a long way, even less can be seen; see lowered and modified cars. When what I see underneath is enough on its own to put me off a car, and what else can be, is on red flags at a car dealer in Japan.

Where my car was used

My car was driven hard around the city of Toyama, in the snowy Hokuriku region of Japan, and it's very rusty underneath. I didn't expect a Toyota to rust this much. Whether cars from Japan arrive rust-free, with the snowfall figures, and how to tell rust on a bolt-on part from rust in the welded body, are on rust on the body or a part. If a listing puts the car in a snowy part of Japan, or says kanreichi shiyō (cold-climate spec, which our listing translator picks out), I'd ask for photos of the underside first. A valid shaken doesn't settle it either: Japan's transport ministry says the shaken checks a car at the time of the test (the Japanese shaken certificate).

What we can't tell you

If the underside is what's holding you back, send us the listing and tell us which parts you'd like photographed from the ground.

Send us the listing link

Photos to ask the dealer for

  1. The sills and jacking points along each side, from ground level
  2. Underneath from the front and from the back, as far as they can see without lifting the car, including the brake and fuel lines that run along the floor, the exhaust and the suspension arms. Why the fuel lines matter on an older car is on fuel leaks on an older car. I do look at rust on the exhaust too, as a matter of course. In my experience, when the exhaust is badly rusted, the body often is too.
  3. The boot (trunk) floor with the mat lifted, since rust in the floor can start from inside as well as from below
  4. If they have a lift, whether they'll take photos on it. Once, a helpful dealer had the car up on a lift when I arrived, but that was the only time, so don't count on it.

The full list is on photos to ask a Japanese dealer for.
